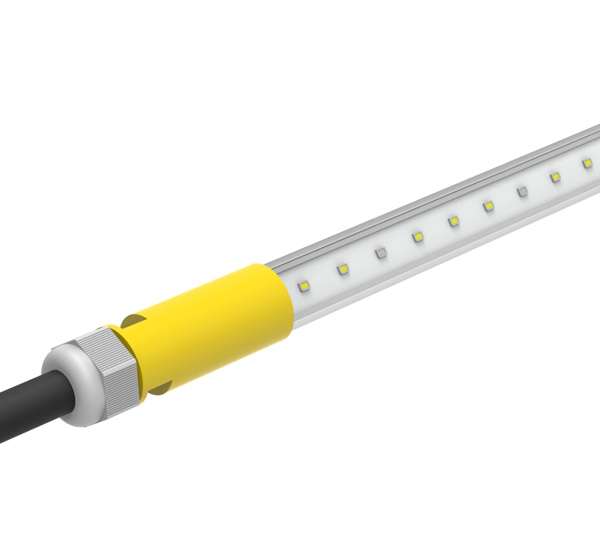

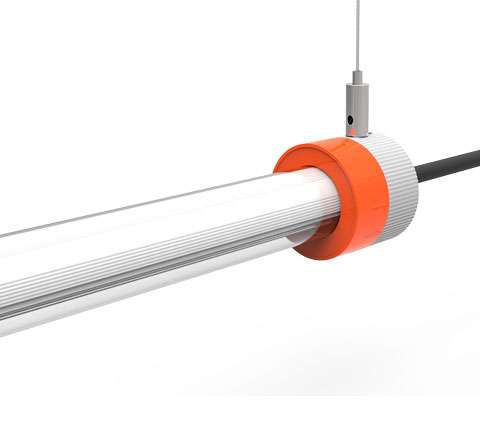

Layer and Breeder Lighting Solution

Layer Poultry Lighting

Linear red enhanced lighting system provides a more uniform and continuous light pattern, free of dark spots and shadows. Birds are less likely to be spooked or provoked by movement outside of the system and are noticeably less stressed and calmer.
Reduces electricity costs, decreases labour and maintenance costs, and increases flock performance.

Linear red enhance lighting has a deep red saturated light output with an added blue and green spectrum, benefiting the vision of your animal. The enhanced red spectrum is the only spectrum which stimulates a hen’s hypothalamic and pineal oscillators, helping maintain circadian rhythms and promoting sexual maturity. It also stimulates the release of two reproduction regulating hormones essential for sexual maturation and daily egg production.

Features

LED: L80B25-80000Hours.
Smart timing + Dim to 0.2% technology provides a natural sunrise and sunset simulation, reducing stress on your layers
Designed for barns, using IK10+Corrosion free materials that withstand harsh barn environments for years to come.
Patent heat sink design V- shape aluminium radiator structure (120°150°270°are available)
Top dimming technology from 0.2% to 100% without any flickers. Perfectly simulates sunrise & sunset - ensures the laying hen’s welfare
Compatible with intelligent lighting control system dimming & timing (Master+ Slave)
Plug and play, support series connection
5Years warranty time
AC100-120v, AC200-240V, DC12V, DC24V, DC48V available

Benefits

1. Saving energy

2. Saving shipping cost

3. Saving installation time and cost

4. Saving maintenance cost

5. Enhances productivity

6. Improves layer’s welfare

7. Reduces energy costs

8. Replaces CFL fixture and LED tube fixture

9. Advanced LED system specialized for poultry

10. Low-profile, wide 360-degree beam angle

11. Advanced linear in-system lighting solution

12. 60cm ,120cm ,150cm ,180cm tubes available

13. Fully dimmable 0.2%-100% with sunrise and sunset feature

Datasheet

Model	Power (at full intensity)	Size (mm)	Luminous Flux Human Photopic	Luminous Flux Poultry Photopic	Dimming	Light Output Equivalence
WP2E-T8-09W-R	9W	28*600	562lumen	1123lumen	Triac / 0-10V	67W incandescent
WP4E-T8-20W-R	20W	28*1200	1220lumen	2430lumen	Triac / 0-10V	150W incandescent
WP5E-T8-24W-R	24W	28*1500	1560lumen	3200lumen	Triac / 0-10V	215W incandescent
WP6E-T8-28W-R	28W	28*1800	1800lumen	3600lumen	Triac / 0-10V	250W incandescent

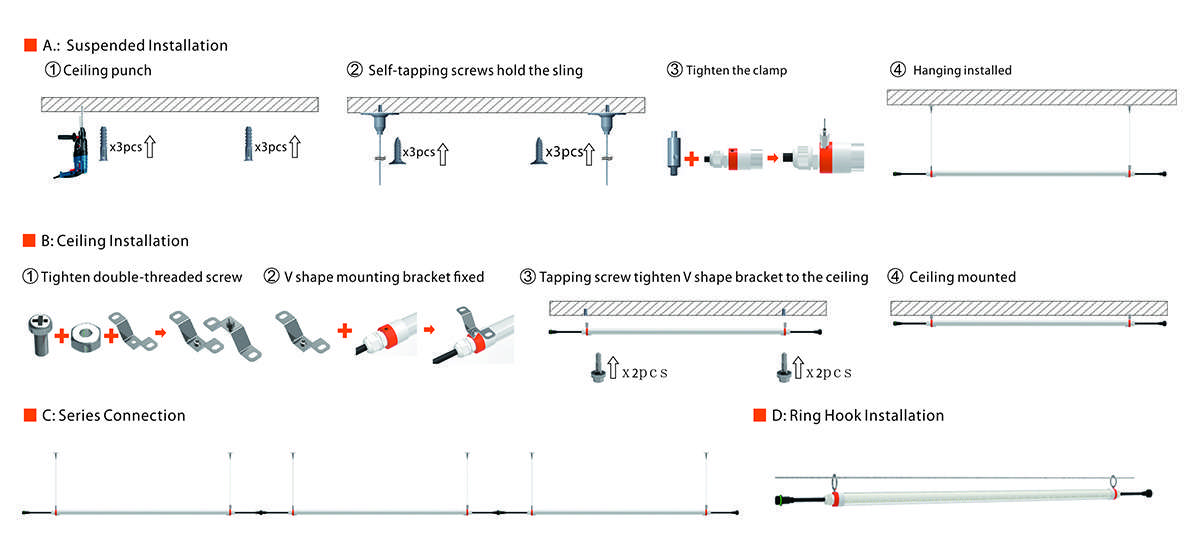

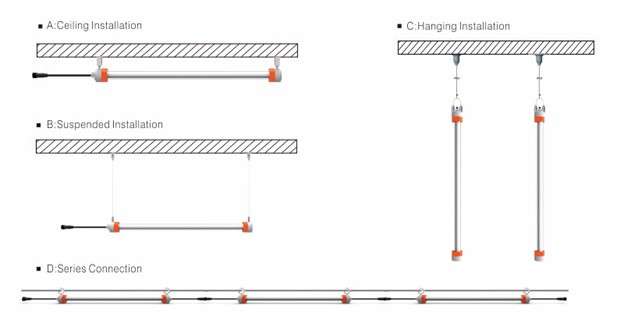

Installation

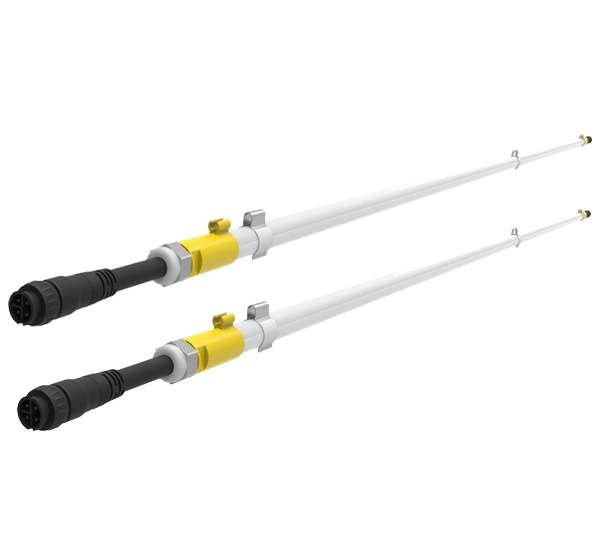

IP67 Clour Switchable Layer Cage

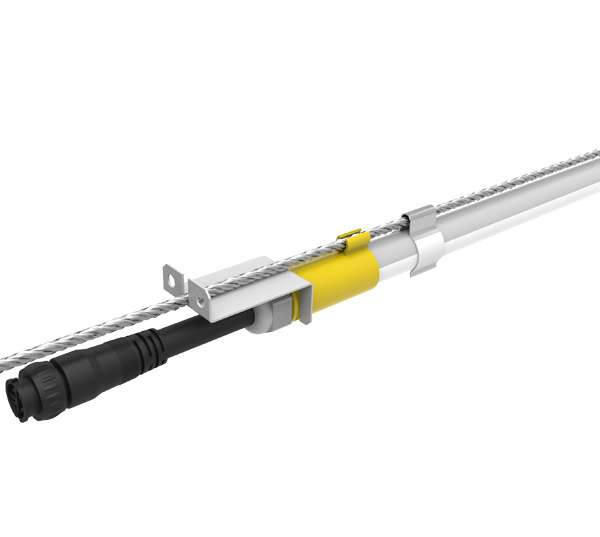

The IP67 T6 Poultry Lighting is designed for enriched cage housing and aviaries lighting, which ensures the lighting inside the cage is balanced and just at the right spot.

It provides appropriate lighting inside the system to stimulate good feed and water intake. It is a 0-100% dimmable, flicker-free lighting solution to ensure animal welfare. The T6 tube in DC is a safe, high quality, reliable, energy efficient and easy to install (Plug& Play) lighting solution.

0-10V Dimmable External Driver

Power: 200W/300W,
Input Voltage: AC100-264V,
Output Voltage: DC48V
PF>0.97 THD<19

Smooth 0-10V Dimming from 0%-100% without any flicker

Features

• Anti-ammonia & acid, corrosion-proof designed to withstand the harsh barn environment
• Humidity & shatter-proof, IP67 waterproof with aviation glue which is used for car and plane production
• Different sizes of 60 cm-240 cm and colors of lamp cap can be customized
• Male & female fast connect + Plug & Play, very easy installation
• Lamp Cap PC Clip+ Stainless Steel Plate + Clamp of threefold strong fixation to the lamp
• 2.5mm2 wires used to largely decrease the voltage drop and ensure uniform brightness of each lamp
• Red + white two colours switchable to increase egg production and avoid chick pecking
• Compatible with AMB 100W/200W/300W 0-10v driver, Dimming Range from 0.5%-100% flicker-free;
• 5 years warranty time

Datasheet

model No	Power	Size (mm)	Efficiency (lm/w)	Luminous (lm)	Light Source	CCT	CRI	LED Q'ty (PCS)	Input Voltage	Beam Angle	Frequency (Hz)
*Single white color(15cm 21.5mm² cable each side with male & female connector)**
WP4J-04WDC-A	4W	1200	120	480	SMD2835	3000K	>80	112	DC48V (Without Driver)	150^o	50/60
WP5J-05WDC-A	5W	1500	120	600	SMD2835		>80	128		150^o	50/60
WP6J-06WDC-A	6W	1800	120	720	SMD2835		>80	144		150^o	50/60
Single white color(15cm 22.5mm² cable each side with male & female connector)*
WP4J-04WDC-B	4W	1200	120	480	SMD2835	3000K	>80	112	DC48V (Without Driver)	150^o	50/60
WP5J-05WDC-B	5W	1500	120	600	SMD2835		>80	128		150^o	50/60
WP6J-06WDC-B	6W	1800	120	720	SMD2835		>80	144		150^o	50/60
Single white color(15cm 41.5mm² cable each side with male & female connector)*
WP4J-2*4WDC	2*4W	1200	White 120lm/w Red 50lm/w	680	SMD2835	3000K+625nm red switchable	>80	96	DC48V (Without Driver)	150^o	50/60
WP5J-2*5WDC	2*5W	1500		850	SMD2835		>80	126		150^o	50/60
WP6J-2*6WDC	2*6W	1800		1020	SMD2835		>80	144		150^o	50/60

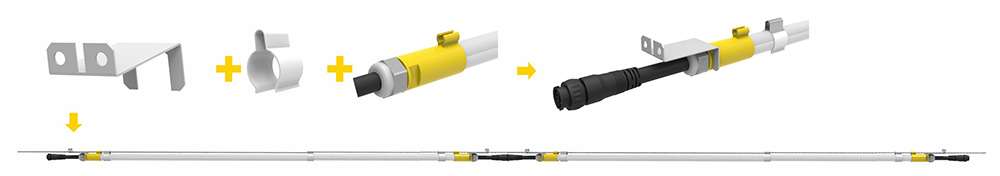

Installation

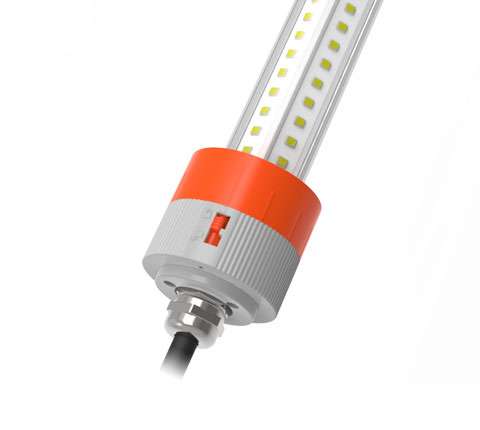

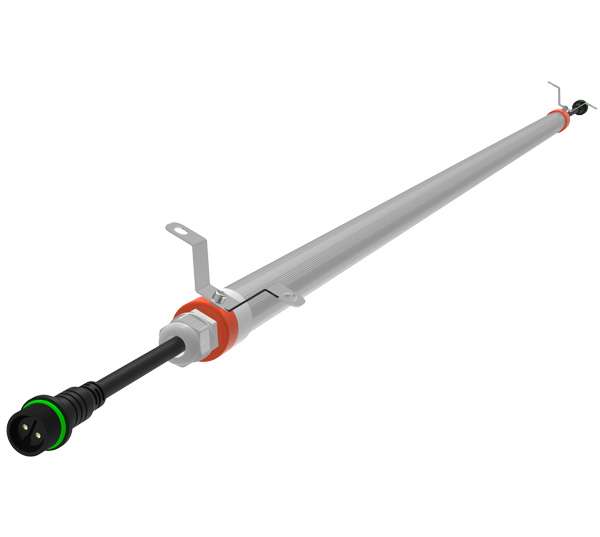

Poultry Lighting

Lower lighting costs and maintenance costs.

Increase musculoskeletal development and weight gain.

Induce earlier maturity for hens to lay eggs.

Increase egg output and quality.

Regulate reproduction cycles.

Increase length of reproductive life.

Features

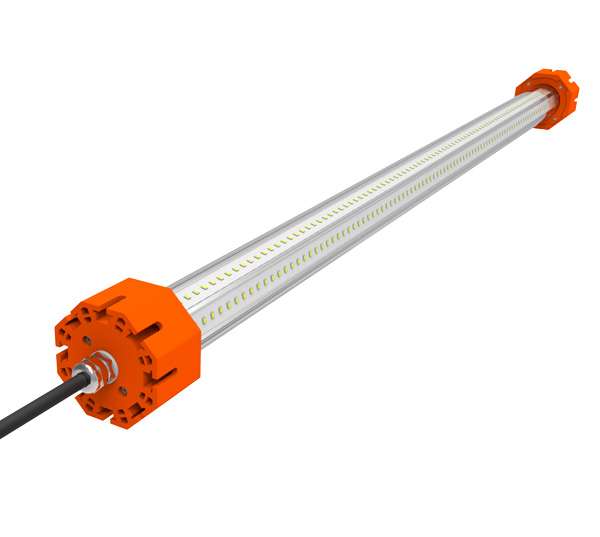

• V-shape patent design 270° aluminum radiator structure.
• Human design, 360° rotating end cap with scale, adjust angle and position.
• Low heat, less than 50°C.
• No UV or IR light radiation, no mercury or other in-organics.
• Instant “ON” to 100% brightness.
• Worldwide top dimming technology from 0.2%-100% without flickers.
• Excellent thermal efficiency.
• Works with electrical systems worldwide.
• Humidity, dust, shatter and water proof with IP67 better rating.
• Optimal anti-ammonia & acid for poultry industrial lighting.

Model No.

Dimension

（mm）

Power

(W)

Efficiency

(LM/W)

Lumen

(LM)

CCT

CRI

Viewing

Angle

Input

Vpltage

Light

Source

LED Q'ty

Frequency

(Hz)

Dimmable

V-shape Version with 150degree White Color (Triac Dimmable 0.2%-100%)

WP2K-09WTD-V

600

130-140lm/w

1170-1260

3000k-6000k

>80

120^o

AC100-120V

AC200-240V

SMD2835

50/60

Triac

WP4K-20WTD-V

1200

130-140lm/w

2600-2800

>80

120^o

SMD2835

112

50/60

Triac

WP5K-24WTD-V

1500

130-140lm/w

3120-3360

>80

120^o

SMD2835

168

50/60

Triac

WP6K-28WTD-V

1800

130-140lm/w

3640-3920

>80

120^o

SMD2835

192

50/60

Triac

V-shape Version with 150degree White Color (0-10V Dimmable 0.2%-100%)

WP2K-09WVD-V

600

130-140lm/w

1170-1260

3000k-6000k

>80

120^o

AC100-120V

AC200-240V

SMD2835

50/60

Triac

WP4K-20WVD-V

1200

130-140lm/w

2600-2800

>80

120^o

SMD2835

192

50/60

Triac

WP5K-24WVD-V

1500

130-140lm/w

3120-3360

>80

120^o

SMD2835

256

50/60

Triac

WP6K-28WVD-V

1800

130-140lm/w

3640-3920

>80

120^o

SMD2835

288

50/60

Triac

V-Shape(150o) Full Spectrum Broilers Version (Triac Dimmable)

WP2K-09WTD-F

600

130-140lm/w

990

>80

120^o

AC100-120V

AC200-240V

498nm&625nm

50/60

Triac

WP4K-20WTD-F

1200

130-140lm/w

2200

>80

120^o

216

50/60

Triac

WP5K-24WTD-F

1500

130-140lm/w

2640

>80

120^o

252

50/60

Triac

WP6K-28WTD-F

1800

130-140lm/w

3080

>80

120^o

288

50/60

Triac

White+Red Two Colors Switchable for Breeder/ Layers (Triac Dimmable)

WP2K-2*09WTD-WR

600

2*9

Red:50lm/w

White:130lm/w

red+white:90-110lm/w

1620

>80

120^o

AC100-120V

AC200-240V

3000k&625nm

132

50/60

Triac

WP4K-2*20WTD-WR

1200

2*20

3600

>80

120^o

256

50/60

Triac

WP5K-2*28WTD-WR

1500

2*28

5040

>80

120^o

320

50/60

Triac

WP6K-2*30WTD-WR

1800

2*30

5400

>80

120^o

320

50/60

Triac
