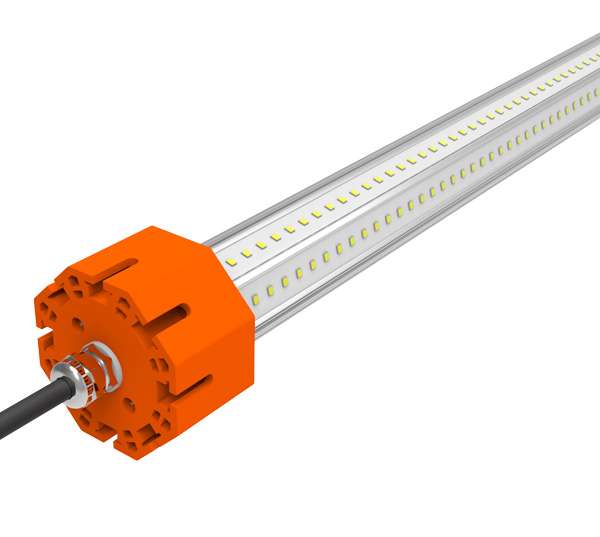

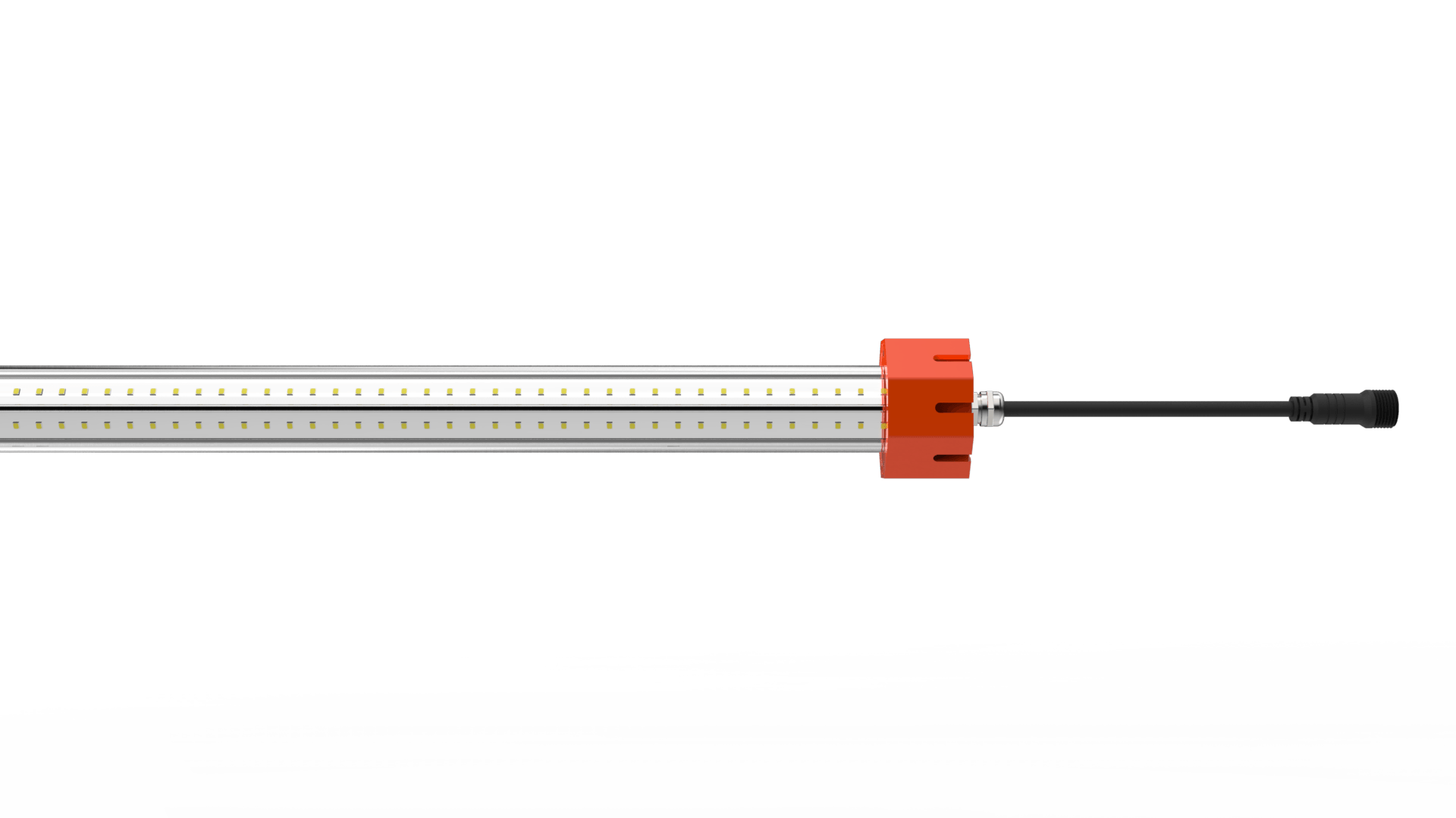

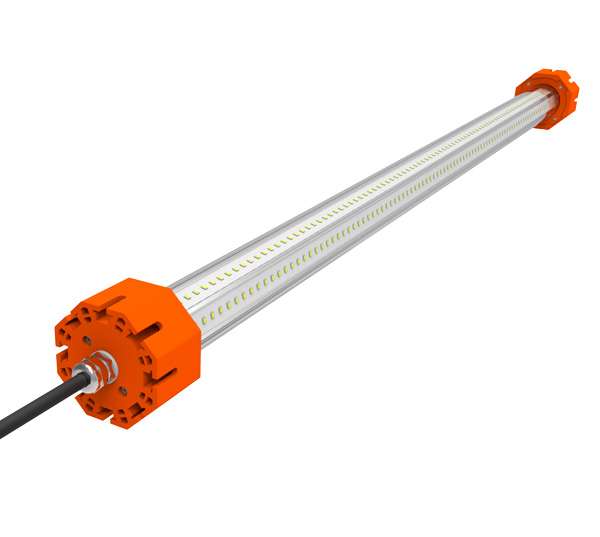

Double V Shape IP66 Broiler Lighting
The 2V structure design is another great innovation for farm lighting.
The T12 LED Tube designed to provide 360° of light coverage in the poultry house ,it eliminates shadows or dark areas and the uniform lighting improves healthy animal development.
It's made with an optimized color spectrum and full dimming capability to meet chicken's developmental needs, enhances welfare and provides uniform growth.
Additech's Poultry Lighting System is a retrofit solution for modern poultry systems, acting as an animal welfare friendly alternative to CFL and cold cathode (CCFL) bulbs.
Applications:
Chicken farm / Pig houses / Birdcage / Refrigerator / Sheepfold / Cowshed / Horse stabe and more agricultral / Freezer
Benefits
• Lower lighting costs and maintenance costs.
• Increase musculoskeletal development and weight agin.
• Induce earlier maturity for hens to lay eggs.
• Increase egg output and quality.
• Regulate reproduction cycles.
• Increase length of reproductive life.
Features
• Double V-shape 360° viewing angle
• High quality and reliable performance.
• Super brightness 120-130LM/W & 130-150 for options.
• Worldwide Triac dimmable technology from 0.2-100% without any flicker to simulate dawn to dark.
• Integrated intelligent dimmer & timer system available.
• Humidity, dust, shatter and waterproof with protection class Ip65.
• Male and Female connector in series needed.
• Optimal anti-ammoniac & acid for poultry industrial lighting.
• D-mark certified perform standard EN60598-2-24.
Datasheet
| Model No | Size(mm) | Power | Light Source
(SMD 2835) |
lumen
Output(LM) |
Luminous
Efficiency |
CRI | Viewing
Angle |
Input Voltage(AC) | Frequency
(HZ) |
Dimmable |
| Standard Lumen Version | ||||||||||
| WP4D-T12-24W | 1200 | 24W | 384pcs | 3120 | 130LM/W | >80 | 360o | AC100-240V(EU)
AC100-277V(US) |
47-63 | N |
| WP4D-T12-24-D | 1200 | 24W | 384pcs | 2880 | 120LM/W | >80 | 360o | AC100-120V
AC220-240V |
47-63 | Y |
| WP5D-T12-28W | 1500 | 28W | 576pcs | 3640 | 130LM/W | >80 | 360o |
AC100-240V(EU) AC100-277V(US) |
47-63 | N |
| WP5D-T12-28W-D | 1500 | 28W | 576pcs | 3360 | 120LM/W | >80 | 360o | AC100-120V
AC220-240V |
47-63 | Y |
| WP6D-T12-36W | 1800 | 36W | 672pcs | 4680 | 130LM/W | >80 | 360o | AC100-240V(EU)
AC100-277V(US) |
47-63 | N |
| WP6D-T12-36W-D | 1800 | 36W | 640pcs | 4320 | 120LM/W | >80 | 360o | AC100-120V
AC220-240V |
47-63 | Y |
| Premium Lumen Version | ||||||||||
| WP4D-T12-24WH | 1200 | 24W | 384pcs | 3600 | 150LM/W | >80 | 360o | AC100-240V(EU)
AC100-277V(US) |
47-63 | N |
| WP4D-T12-24WH-D | 1200 | 24W | 384pcs | 3120 | 130LM/W | >80 | 360o | AC100-120V
AC220-240V |
47-63 | Y |
| WP5D-T12-28WH | 1500 | 28W | 576pcs | 4200 | 150LM/W | >80 | 360o | AC100-240V(EU)
AC100-277V(US) |
47-63 | N |
| WP5D-T12-28WH-D | 1500 | 28W | 579pcs | 3640 | 130LM/W | >80 | 360o | AC100-120V
AC220-240V |
47-63 | Y |
| WP6D-T12-36WH | 1800 | 36W | 672pcs | 5400 | 150LM/W | >80 | 360o | AC100-240V(EU)
AC100-277V(US) |
47-63 | N |
| WP6D-T12-28WH-D | 1800 | 36W | 640pcs | 4680 | 130LM/W | >80 | 360o | AC100-120V
AC220-240V |
47-63 | Y |
| Different Length can be customized | ||||||||||

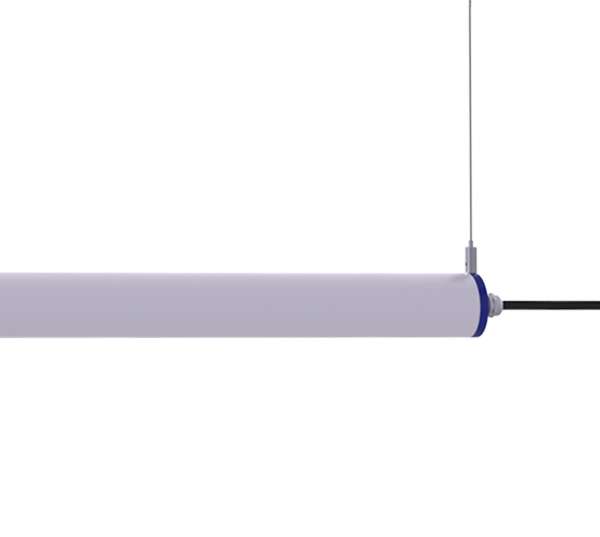

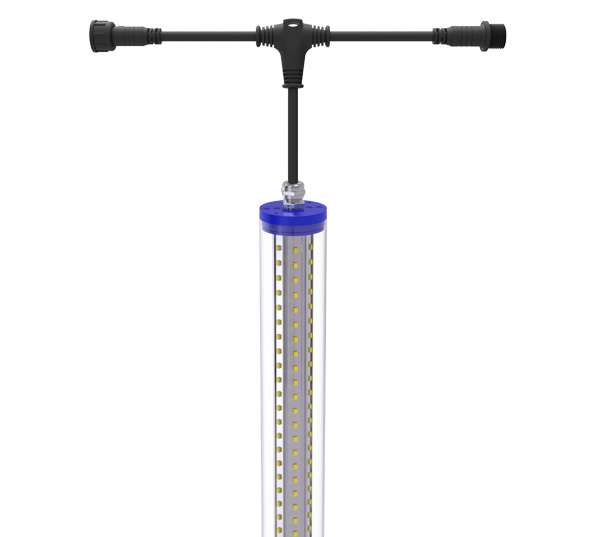

IP66 360-degree Beam Angle T16
• Uniform 360-degree beam angle lighting, both milky and clear cover is available
• High quality and reliable performance.
• Super brightness 120-130LM/W & 130-150LM/W for options.
• Worldwide Triac dimmable technology from 0.2-100% without any flicker to simulate dawn to dark.
• Integrated intelligent dimmer & timer system available.
• Humidity, dust, shatter and waterproof with protection class IP66.
• Male and Female connector in series needed.
• Optimal anti-ammoniac & acid for poultry industrial lighting.
• D-mark certified perform standard EN60598-2-24.
Datasheet
| Model No. | Dimension
(mm) |
Power
(W) |
Luminous
Efficiency |
Lumen | CRI | Input Voltage | Light Source | LED Q'ty
(pcs) |
Viewing Aangle | Frequency
(Hz) |
| Non-dimmable premium lumen version | ||||||||||
| WP4F-T16-24WH | Φ50 x 1200 | 24 | 150lm/w | 3600 | >80 | AC100-240V(EU)
AC100-277V(US) |
SMD2835 | 972 | 360o | 50/60 |
| WP4F-T16-30WH | Φ50 x 1200 | 30 | 150lm/w | 4500 | >80 | SMD2835 | 1188 | 360o | 50/60 | |
| WP5F-T16-30WH | Φ50 x 1500 | 30 | 150lm/w | 4500 | >80 | SMD2835 | 1188 | 360o | 50/60 | |
| WP5F-T16-36WH | Φ50 x 1500 | 36 | 150lm/w | 5400 | >80 | SMD2835 | 1200 | 360o | 50/60 | |
| WP6F-T16-36WH | Φ50 x 1800 | 36 | 150lm/w | 5400 | >80 | SMD2835 | 1512 | 360o | 50/60 | |
| Triac Dimmable premium lumen version | ||||||||||
| WP4F-T16-24WH-D | Φ50 x 1200 | 24 | 130lm/w | 3120 | >80 |
C100-240V(EU) AC100-277V(US) |
SMD2835 | 972 | 360o | 50/60 |
| WP4F-T16-30WH-D | Φ50 x 1200 | 30 | 130lm/w | 3900 | >80 | SMD2835 | 1188 | 360o | 50/60 | |
| WP5F-T16-30WH-D | Φ50 x 1500 | 30 | 130lm/w | 3900 | >80 | SMD2835 | 1188 | 360o | 50/60 | |
| WP5F-T16-36WH-D | Φ50 x 1500 | 36 | 130lm/w | 4680 | >80 | SMD2835 | 1200 | 360o | 50/60 | |
| WP6F-T16-30WH-D | Φ50 x 1800 | 30 | 130lm/w | 3900 | >80 | SMD2835 | 1188 | 360o | 50/60 | |
| WP6F-T16-36WH-D | Φ50 x 1800 | 36 | 130lm/w | 4680 | >80 | SMD2835 | 1512 | 360o | 50/60 | |
| Triac Dimmable Full Spectrum | ||||||||||
| WP4F-T16-24WH-F | Φ50 x 1200 | 24 | 110lm/w | 3120 | >80 |
C100-240V(EU) AC100-277V(US) |
SMD2835 | 972 | 360o | 50/60 |
| WP4F-T16-30WH-F | Φ50 x 1200 | 30 | 110lm/w | 3900 | >80 | SMD2835 | 1188 | 360o | 50/60 | |
| WP5F-T16-36WH-F | Φ50 x 1500 | 36 | 110lm/w | 4680 | >80 | SMD2835 | 1200 | 360o | 50/60 | |

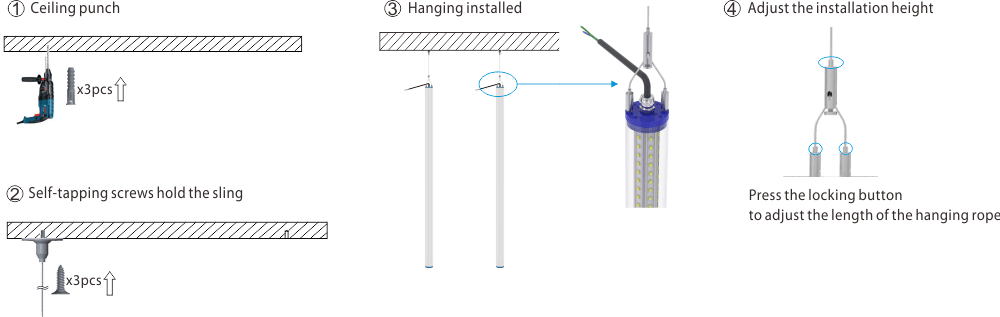

Installation
